• Differential Probe

  • (150MHz / 80V)

    DP-02VF (150MHz / 80V) Differential Probe

    2mV High Sensitivity !X2, X20 AttenuatorFeatures : 150MHz High Frequency MAX. Input Voltage: ±40V DC or 80V p-p or AC 28V rms Bandwidth: DC-150MHz Input Impedance 1MΩ // 7.5PF X2, X20 Attenuator To Ground MAX. Voltage: 40V Output Impedance 50Ω  Applications : High Speed Switching Mode Power Supply Design. Research and Development. High Speed Motor Development. Manufacturing Engineer...

    More

  • (150MHz/800V)

    DP-08VF (150MHz/800V) Differential Probe

    150MHz High Frequency !800V p-p High Voltage !x20, x200 AttenuatorFeatures : MAX. Input Voltage: ±400V DC or 800V p-p or AC 280V rms Bandwidth: DC-150MHz Input Impedance 20MΩ // 5PF X20, X200 Attenuator To Ground MAX. Voltage: 400V Output Impedance 50Ω

    More

  • ( 8KV / 50MHz )

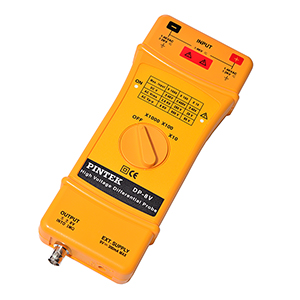

    DP-8V ( 8KV / 50MHz ) Differential Probe

    Features : MAX. Input Voltage: ±4KV DC or 8KV p-p or AC 2.8KV rms Bandwidth: DC-50MHz Input Impedance 20MΩ// 2PF x10, x100, x1000 Attenuator To Ground MAX. Voltage: 4KV CAT III Output Impedance 50Ω

    More

  • ( 15KVp-p/75MHz )

    DP-15K ( 15KVp-p/75MHz ) Differential Probe

    DP-15K is a 100mV high sensitivity and able to measure 15KVp-p high voltage and high dynamitic range model.   Bandwidth is able to reach 75MHz. DP-15K is an upgraded model of DP-14K. The sensitivity is 2 times of DP-14K. The maximum measuring voltage is 1KV higher than DP-25 (1300Vp-p) Input impedance is 50M ohm, loading effect is even smaller (DP-25 is 4M ohm). It is suitable for measuring high impedan...

    More

  • ( 100 MHz,70MHz,50MHz /16KVp-p )

    DP-16K Series ( 100 MHz,70MHz,50MHz /16KVp-p ) Differential Probe

    Features : High Frequency Performance Model Bandwidth:(-3 dB)DC~100 MHz (DP-16K)DC~70 MHz (DP-16KM)DC~50 MHz (DP-16KL) 2 Range: x100, x1000 Input Impedance:10 MΩ // 10 pF each side to ground Over Range Indicate LED Rise Time: 4 ns

    More

  • ( 16KV / 50MHz )

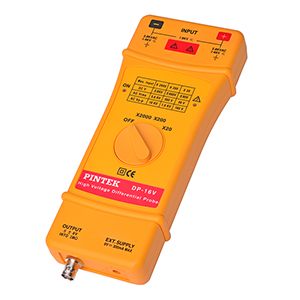

    DP-16V ( 16KV / 50MHz ) Differential Probe

    Features : MAX. Input Voltage: ±8KV DC or 16KV p-p or AC 5.6KV rms Bandwidth: DC-50MHz Input Impedance 30MΩ// 1.5PF x20, x200, x2000 Attenuator To Ground MAX. Voltage: 8KV CAT III Output Impedance 50Ω

    More

  • (150MHz/16KV)

    DP-16VF (150MHz/16KV) Differential Probe

    150MHz High Frequency !16KV p-p High Voltage !x400, x4000 AttenuatorFeatures : MAX. Input Voltage:±8KV DC or 16KV p-p or AC 5.6KV rms Bandwidth: DC-150MHz Input Impedance 20MΩ // 5PF X400, X4000 Attenuator To Ground MAX. Voltage: 3.5KV CAT III Output Impedance 50Ω

    More

  • ( 25MHz/1400Vp-p )

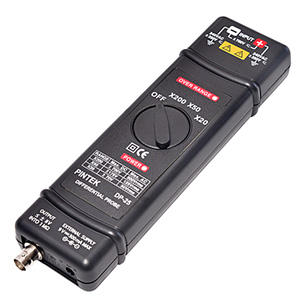

    DP-25 ( 25MHz/1400Vp-p ) Differential Probe

    25 MHZ Bandwidth±700 V (DC+ACpk), or 1400 Vp-p3 Range: X20, X50, X200Input Impedance:4 MΩ // 1.2 PF (Differential)2 MΩ // 2.3 PF(Between terminals and ground)

    More

  • ( 30KVp-p / 75MHz )

    DP-30K ( 30KVp-p / 75MHz ) Differential Probe

    30KVp-p, High Voltage Model . Input Impedance 81.6MΩ//1PF   x200, x2000 Attenuator, Easy to Convert. Separating Design(Standard No.114205) Convenient & Durable.

    More

  • ( 35MHz /1600 Vp-p / ≧10mV )

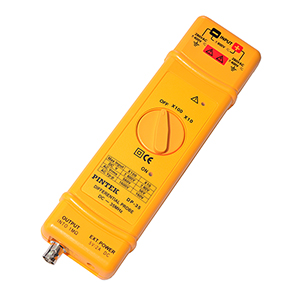

    DP-35 ( 35MHz /1600 Vp-p / ≧10mV ) Differential Probe

    Features : High Sensitivity, High Voltage Model . 35MHz/1600 Vp-p Max. Input Impedance 8MΩ//2.5PF x10, x100 Attenuator, Easy to Convert. Separating Design(Standard No.114205) Convenient & Durable.

    More

Total of 21 results
