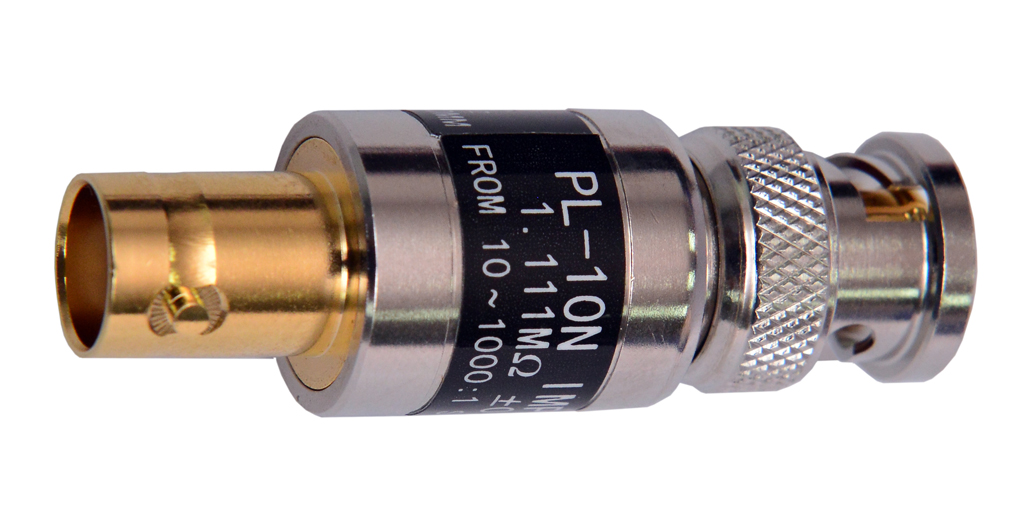

• PL-10N ( Scope Probe Into DMM Converter )

    PL-10N ( Scope Probe Into DMM Converter )

    • MODEL：PL-10N
    • IMPEDANCE：1.111MΩ
    • ACCURACY：±0.5%
    • FREQUENCY B.W.：DC~50MHz
    • WORKING POWER：MAX. 1Watt
    • INPUT VOLTAGE：MAX.250VDC or 200V rms AC
    • DIMENSION：48mm(L)xΦ16mm(D)
    • WEIGHT：25g
    • APPLICATION：Matching the impedance of the Scope probe with the DMM. wiht this converter, the user can use the oscilloscope to watch the wave from and measure the precise reading from the DMM.

      Note:
      PL-10N is the latest improved product. It is using beryllium copper on the BNC contact which is able to increase the durability and contact life. It also uses gold plate to lower the contact resistance and preventing oxidized.
