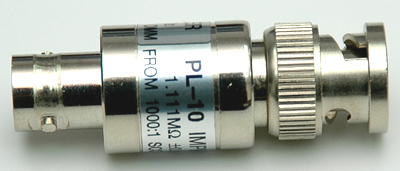

• MODEL:PL-10
    • IMPEDANCE:1.12MΩ
    • ACCURACY:±0.5%
    • FREQUENCY B.W.:DC~50MHz
    • WORKING POWER:MAX. 1Watt
    • INPUT VOLTAGE:MAX.250VDC or 200V rms AC
    • DIMENSION:46mm(L)xΦ16mm(D)
    • WEIGHT:25g
    • APPLICATION:
      Matching the impedance of the Scope probe with the DMM. wiht this converter, the user can use the oscilloscope to watch the wave from and measure the precise reading from the DMM.

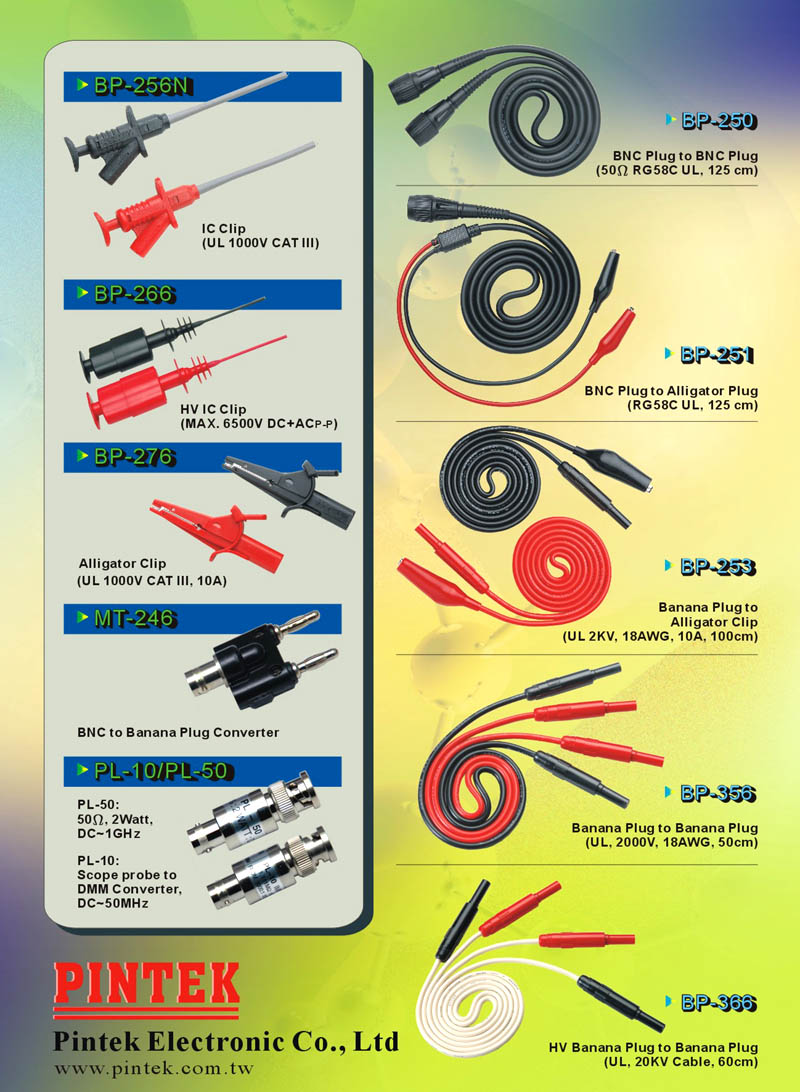

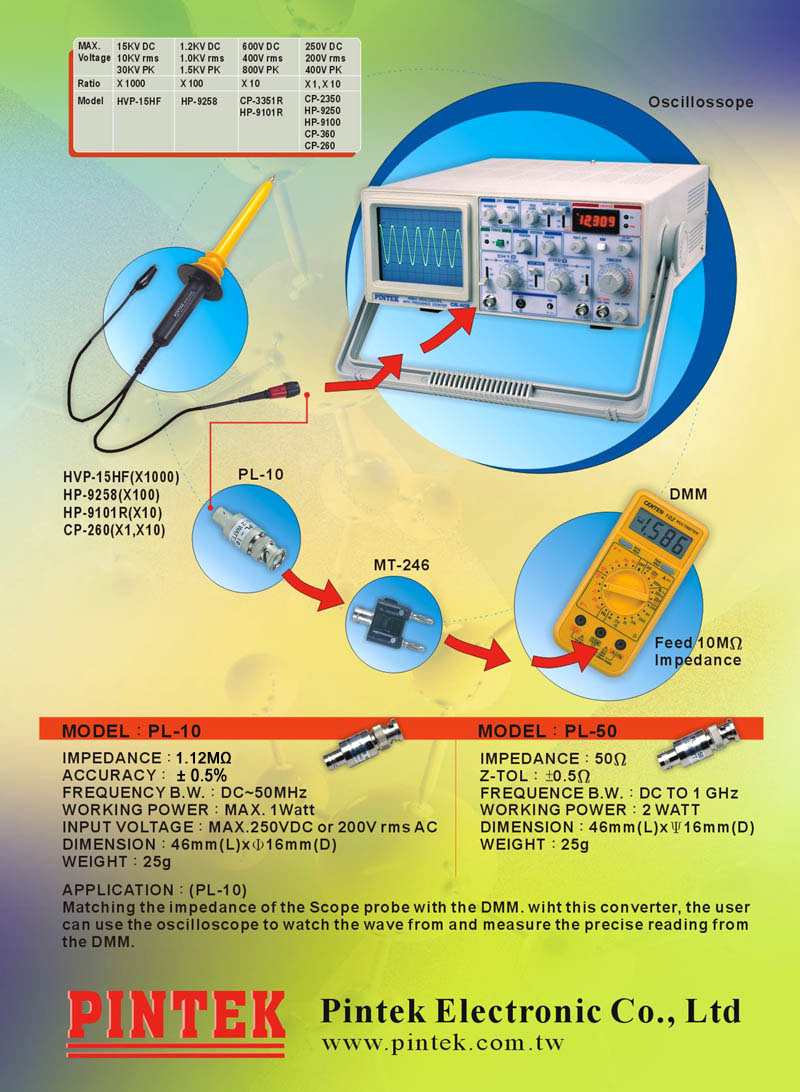

    Application DM-1 DM-2
